Hyperspectral IR Cameras

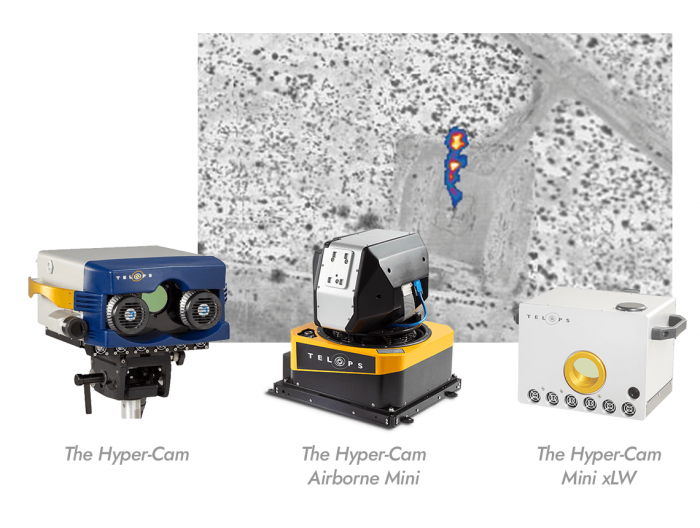

The Hyper-Cam is an advanced passive infrared hyperspectral imaging system that combines high spatial and spectral resolution. It provides real-time radiometrically calibrated data for gas and solid detection and identification.

Additional Info

Key benefits include:

  • Best spectral resolution on the market
  • Weatherproof enclosure ideal for field measurements
  • Dual use: airborne and ground-based

Methane emissions

Methane emissions from a shallow lake scene, observed with the Hyper-Cam.

Reprinted by permission from Macmillan Publishers Ltd: Nature Climate Change, © 2015. Credit: Magnus Gålfalk/Linköping University.

Media

The Hyper-Cam LW & Reveal D&I Software provide real-time chemical imaging.
Key Specifications
Key Specifications:
Midwave Series
  Spectral Range Spatial Resolution
Field of view Spectral Resolution
HYPER-CAM MW 3 - 5 μm 320 × 256 px 6.4° × 5.1° Up to 0.25 cm-1
HYPER-CAM MWE 1.5 - 5 μm
HYPER-CAM MW FAST 3 - 5 μm
HYPER-CAM MWE FAST 1.5 - 5.4 μm



Long Wave Series
  Spectral Range Spatial Resolution
Field of view Spectral Resolution
HYPER-CAM Methane 7.4 - 8.3 μm 320 × 256 px 6.4° × 5.1° Up to 0.25 cm-1
HYPER-CAM MW NB 7.7 - 9.3 μm



Very Long Wave Series
  Spectral Range Spatial Resolution
Field of view Spectral Resolution
HYPER-CAM LW 7.7 - 11.8 μm 320 × 256 px 6.4° × 5.1° Up to 0.25 cm-1







Hyper-Cam Methane
Hyper-Cam Methane:

hyper cam methaneThe Hyper-Cam Methane is a unique, high performance, thermal hyperspectral imaging camera designed for real-time detection and identification of methane (CH4) gas leaks and emissions. This highly sensitive, methane detection system allows the detection of gas leaks as well as the mapping of methane gas over an extended area.

The camera is easy to use and is ideal for gas leak detection and mapping of methane in either large or hard to reach areas. With its integrated calibration system and electronics Hyper-Cam Methane can be used in a standalone (and unmanned) configuration for over 24 hrs.

Key Benefits

  • Rapid visualization of leaks and emissions
  • Detection of small quantities of methane (1 ppm, depending on the environmental conditions) due to high sensitivity
  • Passive monitoring of vast areas

Download the Hyper-Cam Methane Datasheet

Airborne Solution
Airborne Solution:

solution aeroportee

The Hyper-Cam can be used as an advanced hyperspectral imaging solution for airborne infrared spectroscopy.

The Airborne Platform is equipped with a stabilization system and an image motion compensation mirror, which allows you to use the Hyper-Cam from an airplane in order to map vast areas and obtain clear, high-quality spectral information.

Some key specifications include:

  • High sensitivity: Excellent signal-to-noise ratio (SNR) allows the detection of weak signals
  • User-selectable spectral resolution up to 1 cm-1
  • Mapping and targeting acquisition modes
Motorized Polarizer
Motorized Polarizer:

polariseurThe motorized polarizer allows hyperspectral measurements in a linear polarization state at a user-defined angle. It allows better discrimination of targets, such as man-made objects, surface contaminants and liquid films.

The polarizer is mounted on a 360° rotation stage, with continuously tunable angle capability, between the sensor and the calibration module.

Telescopes
Telescopes:

telescopeDo you need a telescope for your Hyper-Cam? We offer plenty:

  • 0.25×, FOV of 24 × 20°
  • 3.5×, FOV of 1.8 × 1.5°
  • 0.5×, FOV of 12 × 10°
  • And many more.
Application notes on the topic
Application notes on the topic:

See all the publications

Customize your sensor the way you want it!

Telops can customize your camera to suit your needs.
Contact Telops for further information about customization programs.
